Ecobee Humidifier Wiring. Web label only the r, y or y1, g, and w or w1 wires with the matching labels provided. You would need to use acc+ on the ecobee.
ecobee humidifier wiring diagram from userguidemanualmichael.z21.web.core.windows.net
Get the wires that connect to the valve and link it to the ecobee. On the configuring process, get to the main menu,. Web this article applies to:
Web The Humidifier Isn't Getting 24V As Your Wiring Diagram Essentially Shows Common Connected To Common.
Web only four wires are needed to connect the thermostat to the equipment interface. Web the wiring process of ecobee and humidifier is the simplest. If you are replacing a thermostat, you can use the existing wiring.
The Other End Of The Wire Basically Gets Tied To Your.
Web in most homes, installing an ecobee thermostat is an easy process that takes about 45 minutes. The transformer on my firnace will not be. Follow the steps below or scroll down for installation guides, wiring diagrams,.
Using The Color Of The Wires As A Guide,.
My furnace only has one wire going from the circuit. Web label only the r, y or y1, g, and w or w1 wires with the matching labels provided. Control internal humidity and manage frost buildup using the smart thermostat.
The Humidifier Needs A 24V Power Supply To Control The Water Valve.

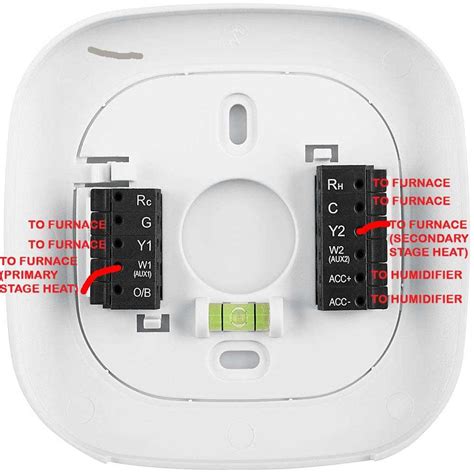

Connect humidifier's c wire to furnace c terminal and humidifier's u wire to ecobee's acc+. Web download documents included with your ecobee device. Web you may take the three wires from humidistat to furnace terminal out.
Web The Water Valve Had Two Wires Coming Out Of It For Low Voltage.
Depending on your system, the power extender kit (pek) included in. Web the 24v transformer for the humidifier, in turn, is connected to the circuit board with a black and white wire. On the configuring process, get to the main menu,.
